01

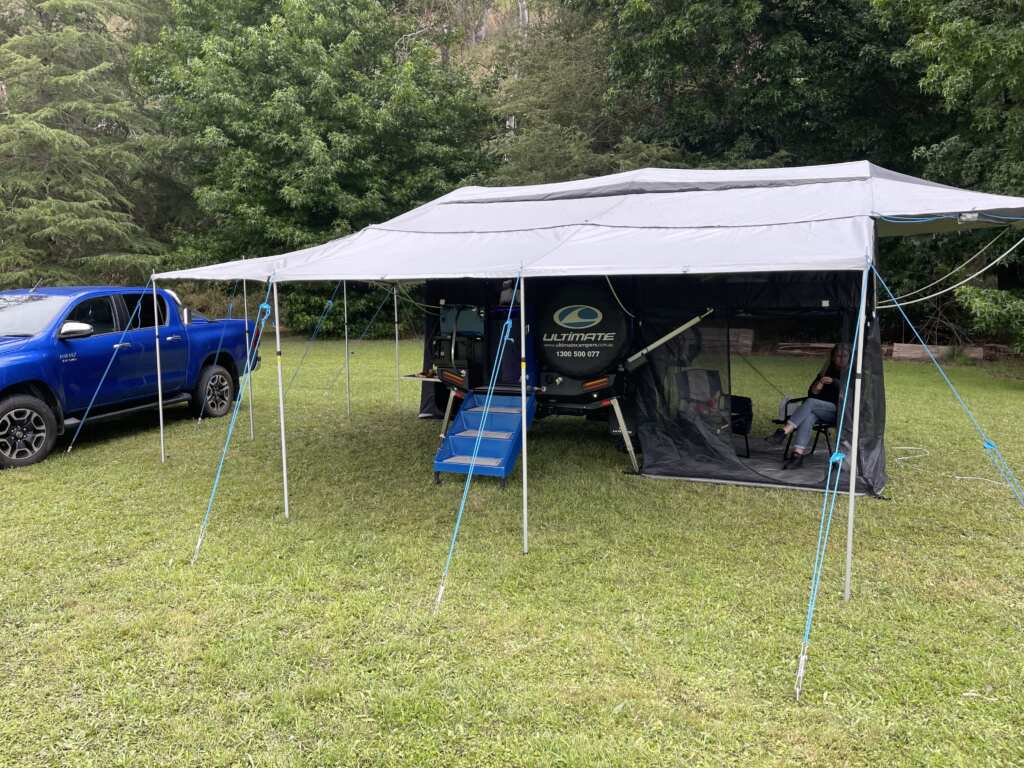

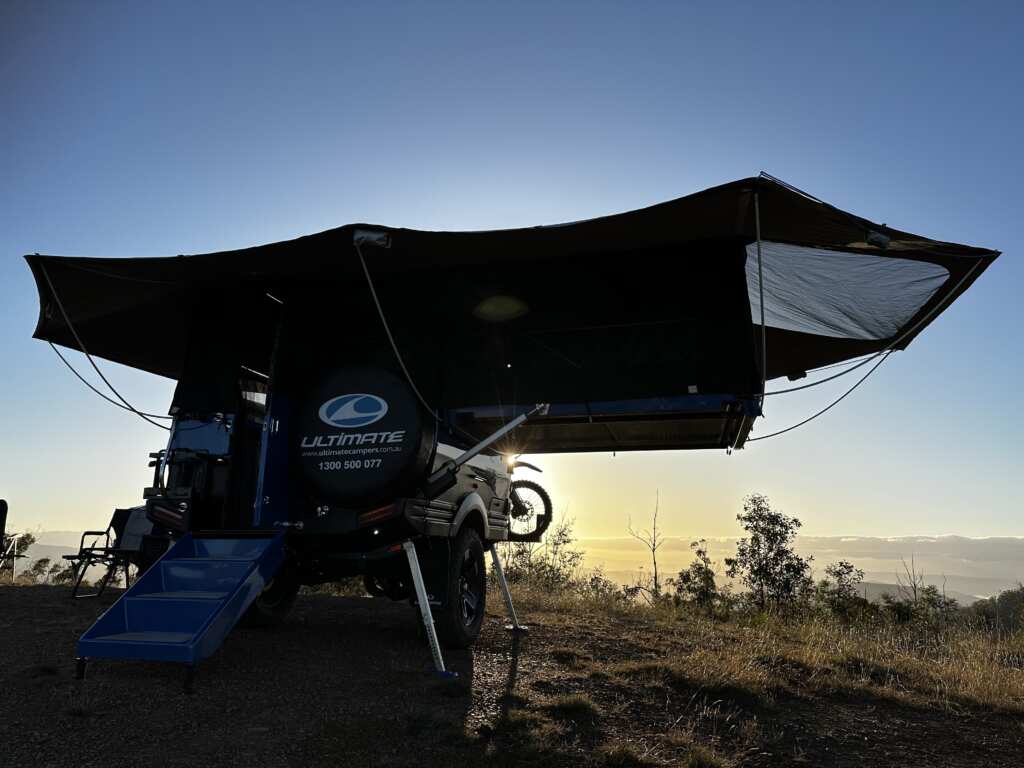

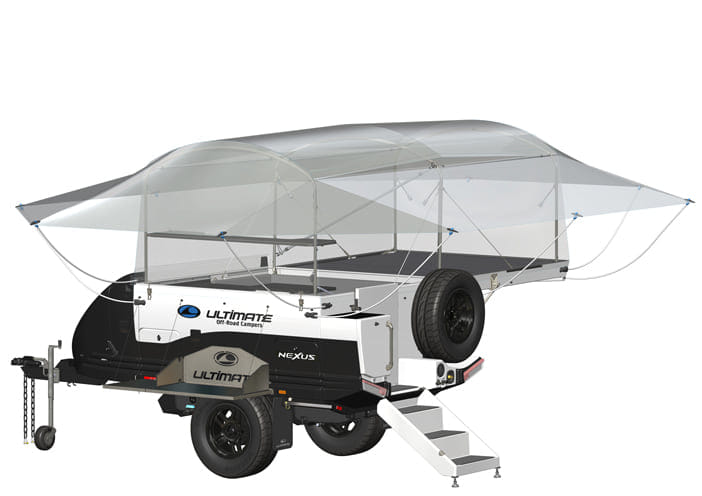

360° weather protection
A wrap-around awning creates a generous sheltered zone while preserving views, ventilation and the connection to camp.
The experience
The most comprehensively equipped Ultimate, with maximum battery, solar, inverter and water capacity for serious off-grid travel.
✓
Maximum off-grid systems
✓
Flexible high-capacity water
✓
Award-winning platform
Independent recognition
Camper Trailer of the Year 2023.
The XSCAPE won the overall Camper Trailer of the Year title, Best Compact and Most Innovative in the 2023 independent awards.
Overall winnerBest CompactMost Innovative
Read the award story Canvas engineering
Protection shaped around outdoor living.
The tent is engineered as part of the camper from the start. The opening geometry, protected living space and textile construction are designed for Australian touring conditions.
02

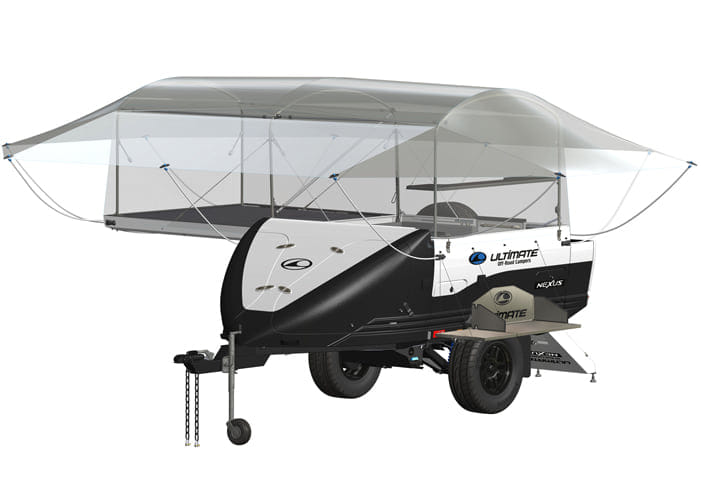

Textile engineering
Purpose-designed panels and support geometry balance usable space, airflow, manageable setup and protection from changing weather.
03

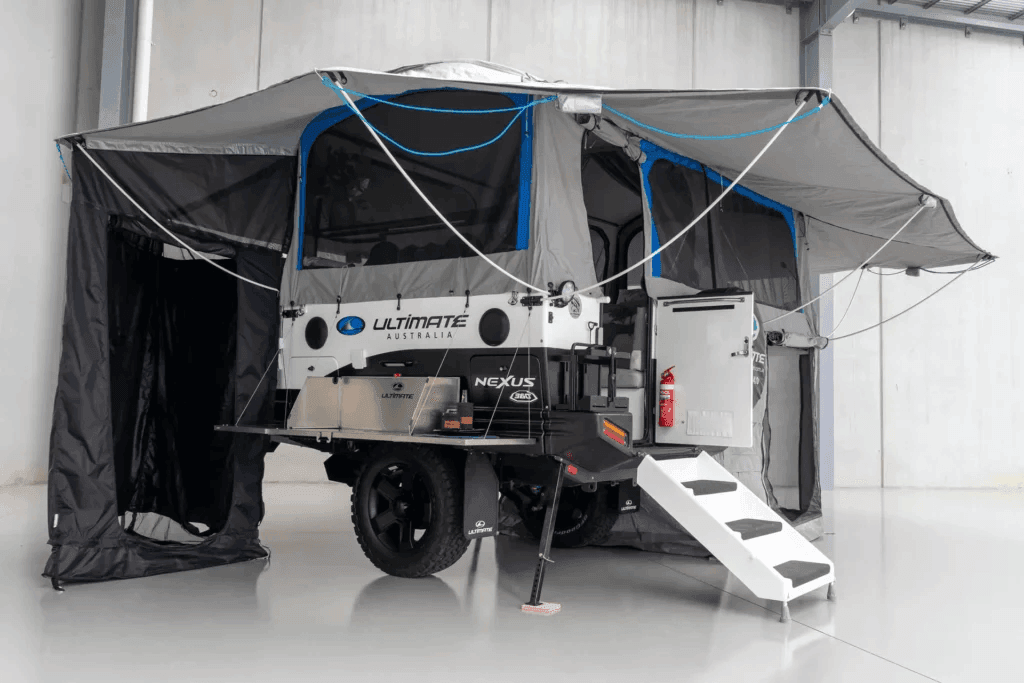

Premium canvas, built to last
Premium outdoor fabrics and specialist manufacturing support long service life, repairability and dependable performance in demanding conditions.
Key equipment
XSCAPE features that earn their place.

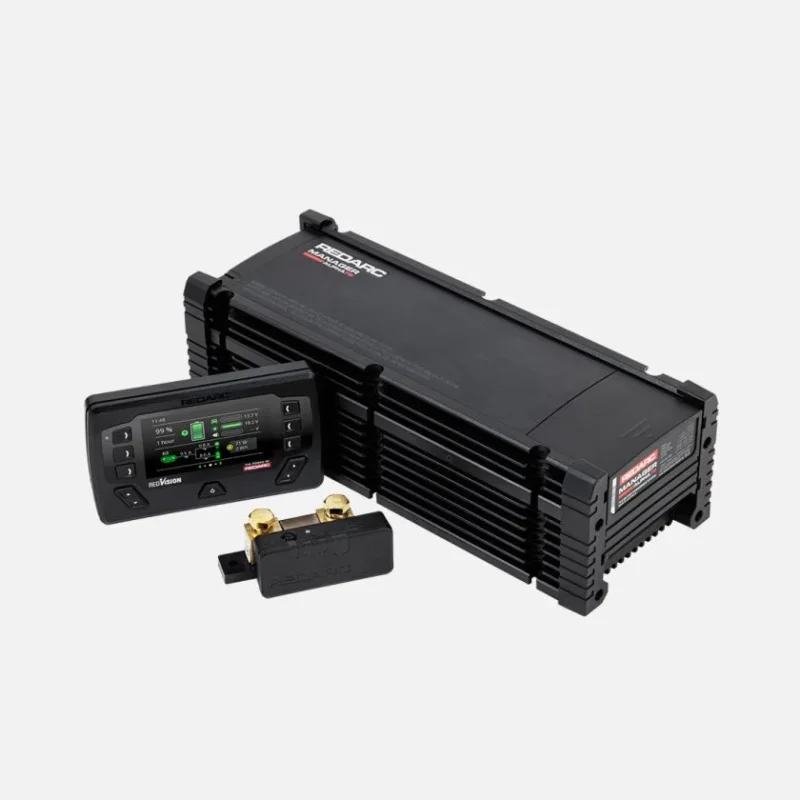

REDARC ALPHA75
High-capacity power management brings mains, vehicle and solar charging together, with RedVision monitoring for clear control of off-grid energy.

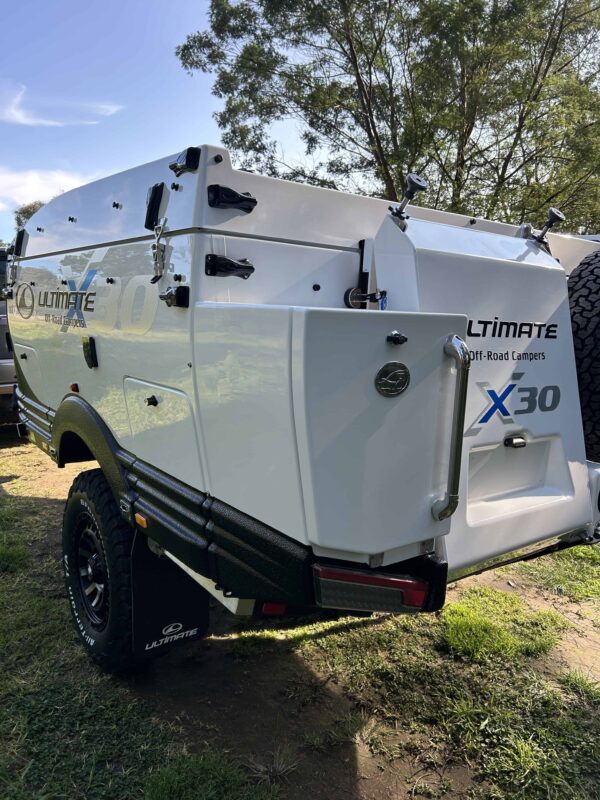

Rear bumper storage
Enclosed storage, integrated lighting and practical access keep touring essentials organised without taking over the living space.

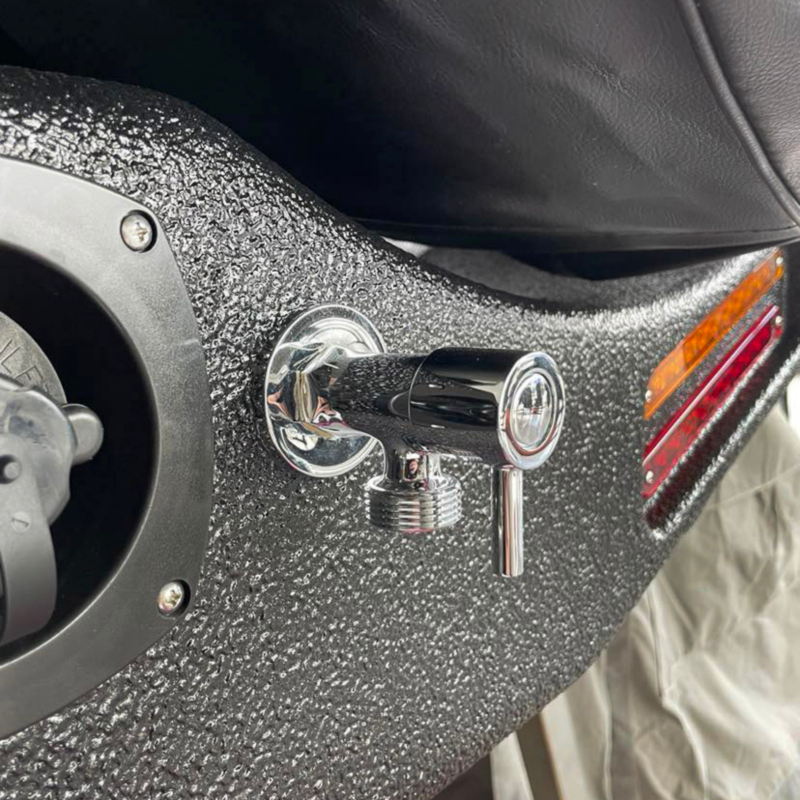

Rear water tap
Fresh water is accessible at the back of the camper for washing hands, rinsing gear and everyday use around camp.

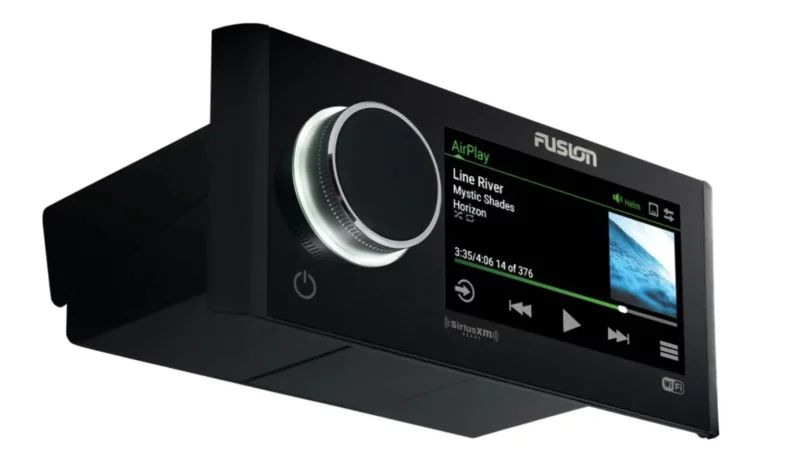

Fusion RA770 stereo
A premium marine entertainment system provides connected audio and straightforward touchscreen control inside the camper.

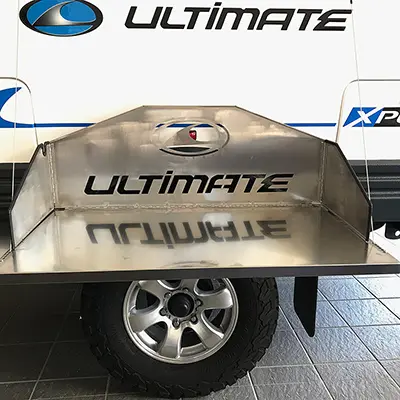

External BBQ shelf
A stable outdoor preparation and cooking surface keeps meals connected to the campsite and the view.
XSCAPE gallery
See the details. Picture the journey.
Select any image for a closer view, then use the arrows or swipe to continue.
Full specifications
Detailed enough to make a confident comparison.
Standard specifications are shown as a clear reference. Final inclusions, weights and supplier components are confirmed on the approved build specification.
Configure XSCAPETechnical+

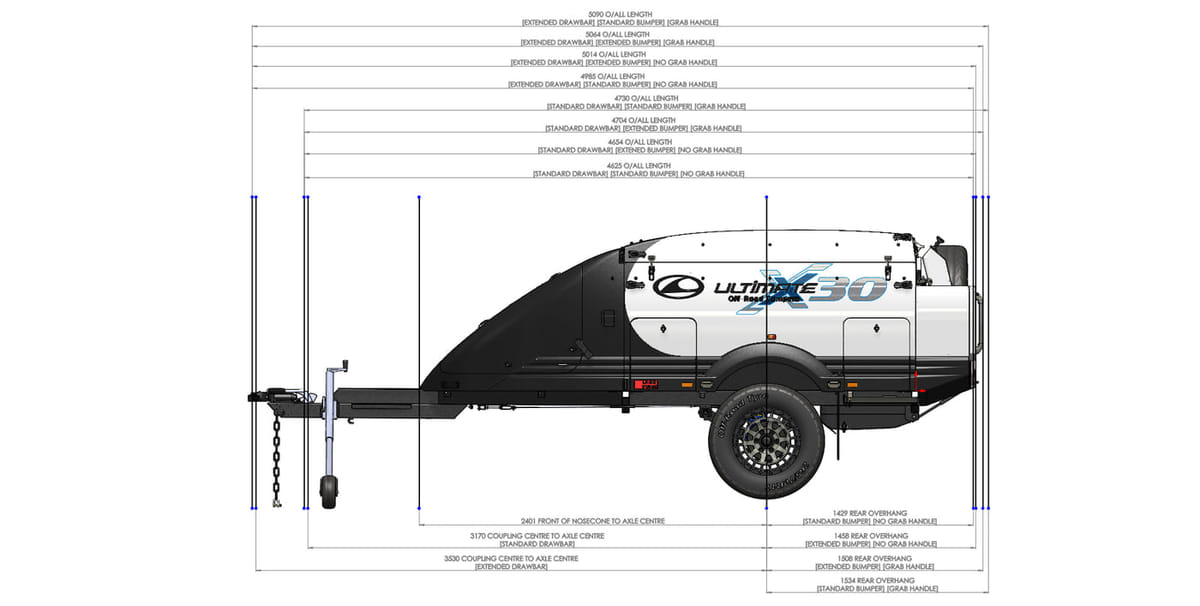

- Dimensions (L × W × H)
- 4.63m × 2.08m × 1.87m
- Tare / ATM
- 1210kg / 1990kg
- Down-ball weight
- 95kg
- Departure angle
- 30°
- Chassis
- High-tensile Duragal
- Suspension
- Independent trailing arm
- Spring / shocks
- Long-travel coil / heavy-duty off-road
- Coupling
- Cruisemaster DO35 V3
Canvas+
- Tent
- Premium outdoor canvas
- Roof
- Tropical safari roof
- Entry
- Full-length flexi door and magnetic screen
- Living area
- Breakfast bar with larger end windows
- Weather protection
- 360° awning, pegless and anti-flap systems
- Bed end
- Gas-strut assisted
Electrical+
- Battery
- 628Ah 12V lithium (2 × 314Ah modules)
- Management
- REDARC ALPHA75 with RedVision and Rogue
- Inverter
- REDARC 3000W RS3
- Solar
- 400W panel kit
- Refrigeration
- 130L fridge
- Opening
- Electric lid with stainless-steel mounts
- Power
- 240V installation, internal outlets and exterior outlet
- Lighting / audio
- Interior and exterior lighting with Fusion RA770 stereo
Interior & bedding+
- Lounge
- U-shaped premium leather lounge
- Storage
- Full drawer system and galley shelf
- Surfaces
- Carbon benchtop and table
- Living area
- Marine-grade carpet and easy-clean splashback

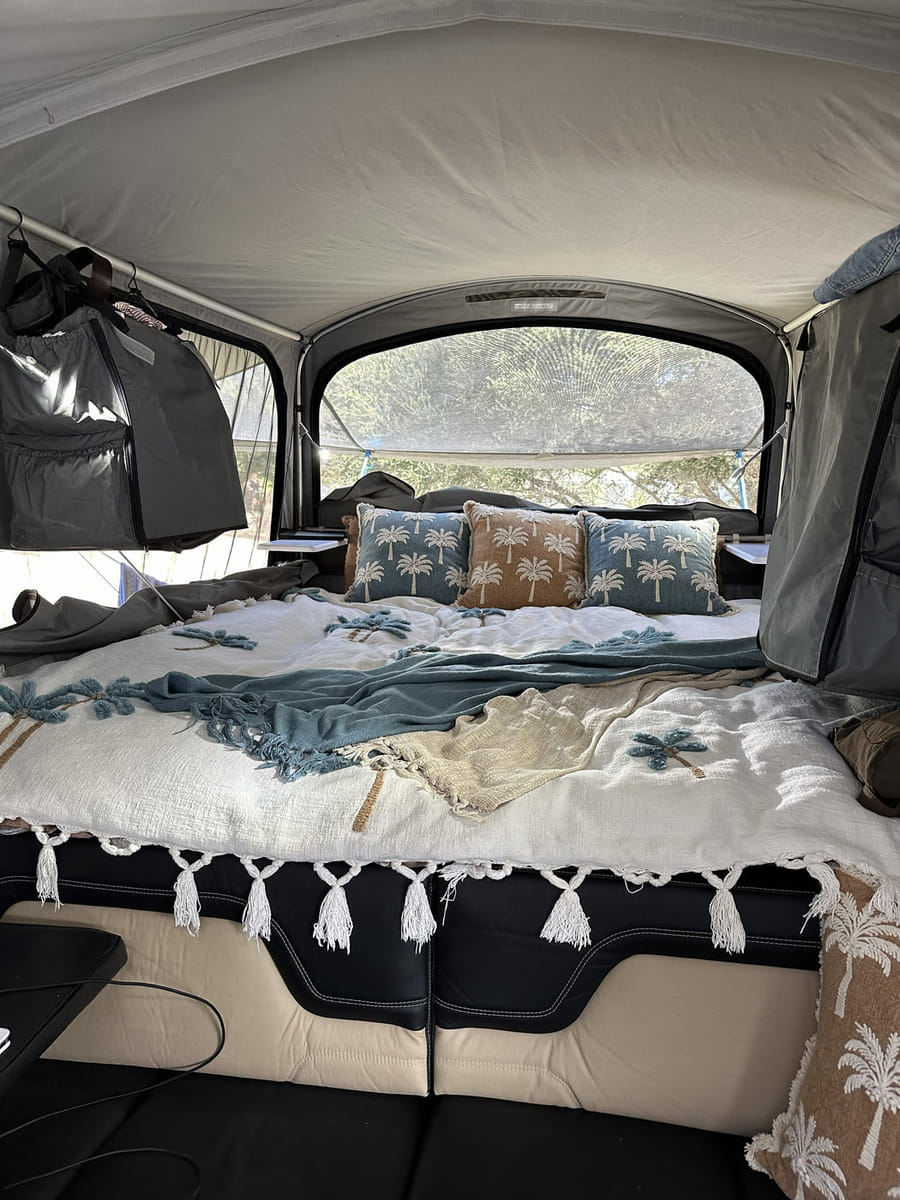

- Bed
- King-size Ezi Fold memory-foam mattress
- Comfort
- Under-bed air mesh and privacy curtains
Exterior+
- Storage
- 1340L nose cone plus rear bumper storage
- Wheels
- 18-inch alloys with BFGoodrich all-terrain tyres
- Brakes
- 12-inch drum brakes with 1990kg ATM upgrade
- Protection
- Tough single-colour polyurea coating and wheel flares
- Touring
- BBQ shelf, roof tracks and multi-fit drawbar plate
- Access
- Easy-entry spar mounts and swing-up jockey wheel
Water & gas+
- Fresh water
- 140L rear tank plus 55L additional tank
- Grey water
- 55L holding tank
- System
- Electric pump, mains connection and control panel
- Gas
- LPG installation with two 3.7kg bottles
- Cooking
- Three-burner stove with integrated sink
- Comfort
- Combi heating, hot water and shower
- Access
- Filtered water, external gas point and rear water tap
Specifications and suppliers may change. Please confirm the final production specification with an Ultimate Camper specialist.
