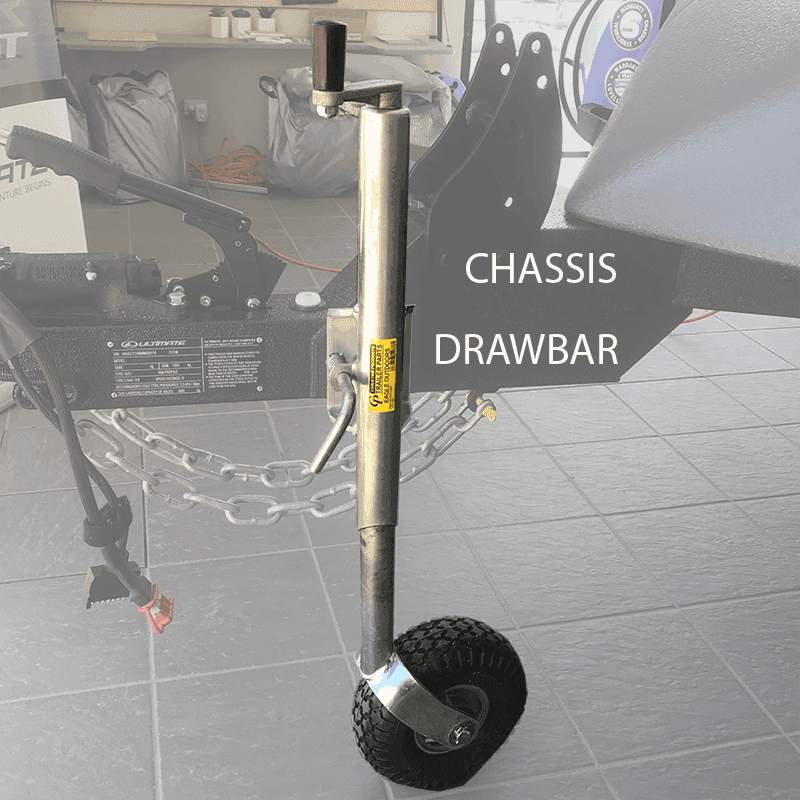

Jockey Wheel (Swing Up)
$295.00
The Jockey Wheel (Swing Up) uses a swivel mount, allowing to easily fold up and secure when on the road. Custom made for Ultimate Campers, with a airless tyre and two mounting heights.
Product information
Made for the way an Ultimate is used.
Features
• Custom made for Ultimate Campers.
• Galvanised stainless steel.
• Mounting style: Swivel.
• Wheel diameter: 230mm.
• Airless (non-pneumatic) rubber tyre.
• Closed Length: 570mm.
• Locking pin included.
• Low and Tall refers to the position of the mounting bracket.
• Overall extended height is 900mm

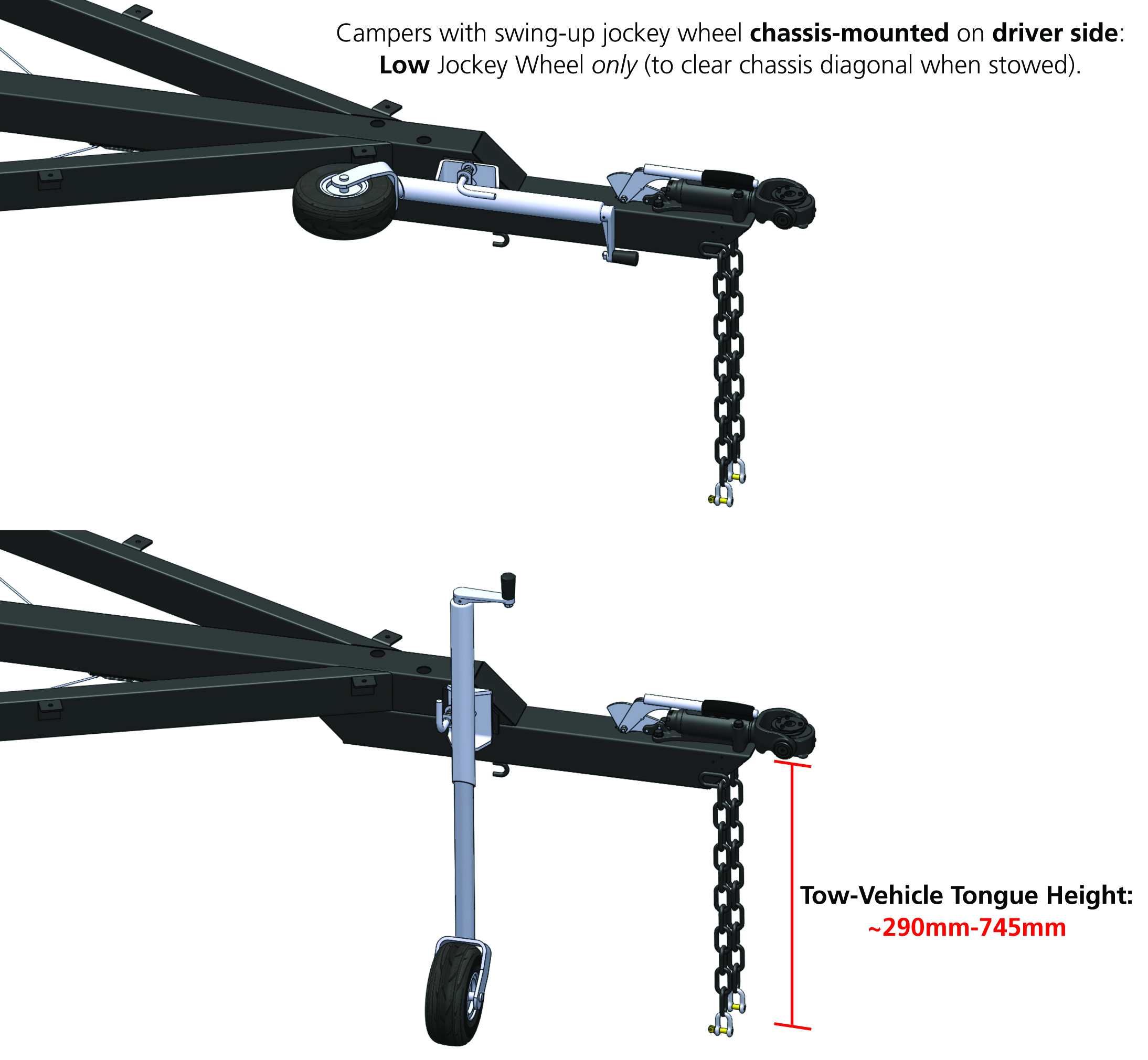

Low Jockey Wheel
• Mount on chassis - low only.
• Length from pivot bracket: 265mm.
• Used on cars with low tow ball.

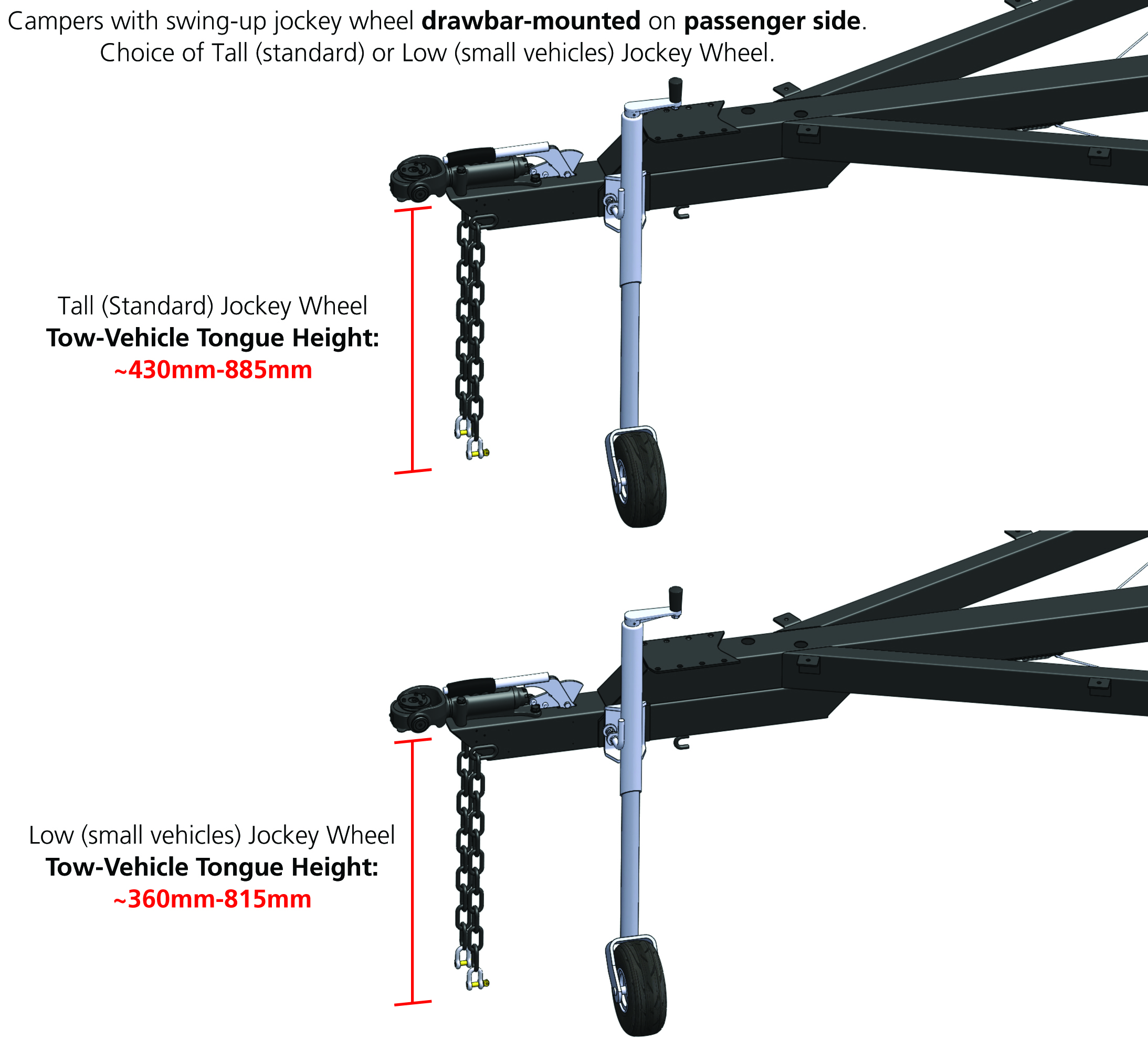

Tall Jockey Wheel
• Mount on drawbar - tall or low.
• Length from pivot bracket: 205mm.
• Can fit all ultimates.
• If your camper does not already have this type of Jockey Wheel you will need to purchase the jockey wheel mount plate and have it welded to the drawbar.
